FYT Series

Description:

• Heavy duty commercial cylindrical leverset

• ANSI/BHMA A156.2, Grade 1

• UL 3-hour fire rated

• Meets ADA requirements

• Push button grip

• Clutch Mechanism

• I/C Core lockset available

• Electrification available (see Electric Hardware section)

FYM Series

Description:

• Heavy duty commercial cylindrical leverset

• ANSI/BHMA A156.2, Grade 1

• UL 3-hour fire rated

• Meets ADA requirements

• Push button grip

• Clutch Mechanism

• I/C Core lockset available

• Electrification available (see Electric Hardware section)

FYH Series

Description:

• Heavy duty commercial cylindrical leverset

• ANSI/BHMA A156.2, Grade 1

• UL 3-hour fire rated

• Meets ADA requirements

• Push button grip

• Clutch Mechanism

• I/C Core lockset available

• Electrification available (see Electric Hardware section)

FYN Series

Description:

• Heavy duty commercial cylindrical leverset

• ANSI/BHMA A156.2, Grade 2

• UL 3-hour fire rated

• Meets ADA requirements

• Push button grip

• Clutch Mechanism available

• I/C Core lockset available

FY3 Series

Description:

• Heavy duty commercial cylindrical leverset

• ANSI/BHMA A156.2, Grade 2

• UL 3-hour fire rated

• Meets ADA requirements

• Push button grip

• Clutch Mechanism available

• I/C Core lockset available

FYG Series

Description:

• Heavy duty commercial cylindrical leverset

• ANSI/BHMA A156.2, Grade 2

• UL 3-hour fire rated

• Meets ADA requirements

• Push button grip

• Clutch Mechanism available

• I/C Core lockset available

AVAILABLE FINISH:

• Matte Black (US19/622)

• Satin Nickel (US15/619)

• Satin Chrome (US26D/626)

 Available Downloads:

FYT-E Series

Description:

• Heavy duty commercial electrified cylindrical leverset

• Voltage: Dual 12/24VDC input

• Current: 600/300mA @ 12/24VDC

• Fail-Safe or Fail-Secure

• ANSI/BHMA A156.25, Grade 1

• UL 3-hour fire rated

• Meets ADA requirements

• Push button grip

• Clutch Mechanism

• I/C Core lockset available

Available Finishes:

• Oil Rubbed Bronze (US10B/613)

• Satin Nickel (US15/619)

• Satin Chrome (US26D/626)

Available Downloads

FYM-E Series

Description:

• Heavy duty commercial electrified cylindrical leverset

• Voltage: Dual 12/24VDC input

• Current: 600/300mA @ 12/24VDC

• Fail-Safe or Fail-Secure

• ANSI/BHMA A156.25, Grade 1

• UL 3-hour fire rated

• Meets ADA requirements

• Push button grip

• Clutch Mechanism

• I/C Core lockset available

Available Finishes:

• Oil Rubbed Bronze (US10B/613)

• Satin Nickel (US15/619)

• Satin Chrome (US26D/626)

Available Downloads

FYH-E Series

Description:

• Heavy duty commercial electrified cylindrical leverset

• Voltage: Dual 12/24VDC input

• Current: 600/300mA @ 12/24VDC

• Fail-Safe or Fail-Secure

• ANSI/BHMA A156.25, Grade 1

• UL 3-hour fire rated

• Meets ADA requirements

• Push button grip

• Clutch Mechanism

• I/C Core lockset available

Available Finishes:

• Oil Rubbed Bronze (US10B/613)

• Satin Nickel (US15/619)

• Satin Chrome (US26D/626)

Available Downloads

FL3B Series

Description:

• Heavy duty commercial tubular leverset

• ANSI/BHMA A156.2, Grade 2

• UL 3-hour fire rated

• Meets ADA requirements

• Turn-piece or Push-button locking

• I/C Core lockset available

FLNB Series

Description:

• Heavy duty commercial tubular leversets

• ANSI/BHMA A156.2, Grade 2

• UL 3-hour fire rated

• Meet ADA requirements

• Turn-piece or Push-button locking

• I/C Core lockset available

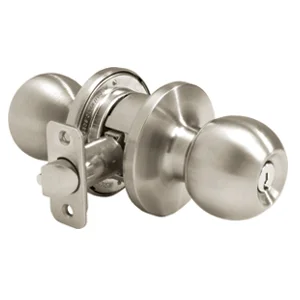

FT3B Series

Description:

• Heavy duty commercial tubular knobset

• ANSI/BHMA A156.2, Grade 2

• UL 3-hour fire rated

• Turn-piece or Push-button locking

• I/C Core cylindrical lockset available

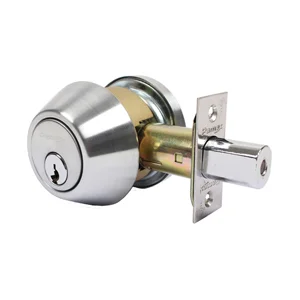

Model #: FDP

Description:

• Heavy duty commercial deadbolt

• ANSI/BHMA A156.36, Grade 1

• UL 3-hour fire rated

• Meets ADA requirements

• I/C Core lockset available

AVAILABLE FINISH:

• Oil Rubbed Bronze (US10B/613)

• Satin Nickel (US15/619)

• Satin Chrome (US26D/626)

• Matte Black (US19/622)

Available Downloads:

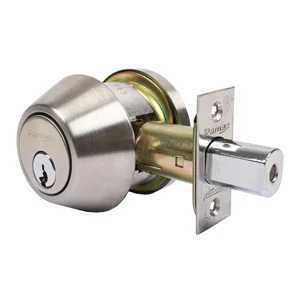

Model #: FD7

Description:

• Heavy duty commercial deadbolts

• ANSI/BHMA A156.5, Grade 2

• UL 3-hour fire rated

• Meets ADA requirements

• I/C Core lockset available

AVAILABLE FINISH:

• Oil Rubbed Bronze (US10B/613)

• Satin Stainless Steel (US32D/630)

• Polished Brass (US3/605)

• Antique Brass (US5/609)

• Satin Nickel (US15/619)

• Satin Chrome (US26D/626)

• Matte Black (US19/622)

Available Downloads

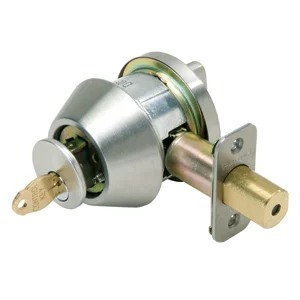

Model #: FD8

Description:

• Removable cylinder commercial deadbolt

• Eliminate rekeying process by exchanging cylinders under one minutes

• ANSI/BHMA A156.5, Grade 2

• Meets ADA requirements

• UL Listed latch available

AVAILABLE FINISH:

• Oil Rubbed Bronze (US10B/613)

• Satin Nickel (US15/619)

• Satin Chrome (US26D/626)

• Matte Black (US19/622)

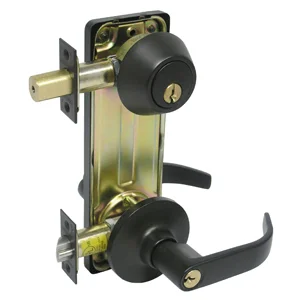

FI3-4 Series

Description:

• Tubular interconnected lock

• 4” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rate

Available in:

• Single or Double Locking

• Small format I/C Core

• Removable cylinder

AVAILABLE FINISHES:

• Oil Rubbed Bronze (US10B/613)

• Satin Nickel (US15/619)

• Polished Brass (US3/605)

• Satin Chrome (US26D/626)

• Matte Black (US19/622)

FIN-4 Series

Description:

• Tubular interconnected locks

• 4” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rate

Available in:

• Single or Double Locking

• Small format I/C Core

• Removable cylinder

FIYE-4 Series

Description:

• Tubular interconnected locks

• 4” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

Available in:

• Single or Double Locking

• Small format I/C Core

• Removable cylinder

FI3-5 Series

Description:

• Tubular interconnected locks

• 5-1/2” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

 Available In:

• Single or Double Locking

• Small format I/C Core

• Removable cylinder

FIN-5 Series

Description:

• Tubular interconnected locks

• 5-1/2” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rate

 Available In:

• Single or Double Locking

• Small format I/C Core

• Removable cylinder

FIYE-5 Series

Description:

• Tubular interconnected locks

• 5-1/2” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

 Available In:

• Single or Double Locking

• Small format I/C Core

• Removable cylinder

FIT-4 Series

Description:

• Contemporary tubular interconnected locks

• 4” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

Available In:

• Single locking only

FIS-4 Series

Description:

• Contemporary tubular interconnected locks

• 4” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

 Available In:

• Single locking only

FIK-4 Series

Description:

• Contemporary tubular interconnected locks

• 4” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

Available In:

• Single locking only

FIT-5 Series

Description:

• Contemporary tubular interconnected locks

• 5-1/2” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

Available In:

• Single locking only

FIS-5 Series

Description:

• Contemporary tubular interconnected locks

• 5-1/2” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

 Available In:

• Single Locking Only

Available Finishes:

• Polished Chrome (US26/625)

• Satin Nickel (US15/619)

• Matte Black (US19/622)

FIK-5 Series

Description:

• Contemporary tubular interconnected locks

• 5-1/2” center-to-center

• ANSI/BHMA A156.12, Grade 2

• Meets ADA requirements

• UL 3-hour fire rated

Available In:

• Single locking only
